Maxflex Coax 141 Cable with FEP Jacket
|
Maxflex Coax 141 Cable with FEP Jacket |
 |
|
|

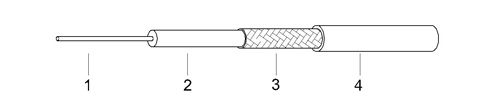

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Silver Played Copper Clad Steel |
0.92±0.02 |
|
2. Dielectric |
PTF |
2.95±0.05 |
|
3. Outer Conductor |
Silver Plated Copper Braid
|
Nom. 3.50 |
|
4. Jacket |
FEP(blue)
|
4.15±0.10 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
Nom. 95.1 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
70 |
|
Cutoff Frequency (GHz) |
|
34 |
|
Voltage withstanding(kVrms 50Hz/1 min) |
|
3.0 |
|
Screening efficiency(dB) |
|
>100 |
|
Operating Temp. (℃) |
|
-55 to 200 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (GHz) |
|
Attenuation (dB/100m) |
|
0.5 |
|
0.33 |
|
10 |
|
1.67 |
|
12.5 |
|
1.93 |
|
18
|
|
2.45
|
|
