Low Loss Flexible 500 Cable
Low Loss Flexible 500 Cable Double Shielded with Black PVC Jacket
|
 |
|
|

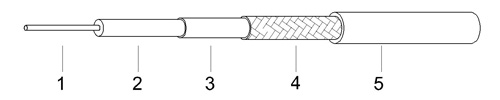

Construction Spectification |
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Solid Copper |
3.61 |
|
2. Dielectric |
Physical Foam Polyethylene |
9.40 |
|
3. Outer Conductor |
Bonded Aluminum Foil |
9.55 |
|
4. Overall Braid |
Tinned Copper Braid
|
10.29 |
|
5. Jacket |
Black PVC or Polyethylene
|
12.70 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
77.1 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
86 |
|
Shielding Effectiveness (>dB) |
|
90 |
|
Inner Conductor DC Resistance (Ω/km) |
|
1.68 |
|
Outer Conductor DC Resistance (Ω/km) |
|
4.17 |
|
Voltage Withstand (Volts DC) |
|
3000 |
|
VSWR≤(Return Loss ≥dB) |
5-3000MHz |
1.20 (20) |
|
800-1000MHz |
1.10 (26) |
|
1700MHz-2000MHz |
1.15 (23) |
|
2000MHz-2400MHz |
1.15 (23) |
|
Min. Bend Radius (mm) |
|
64 |
|
Operating Temp. (℃) |
|
-40 to 80 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (MHz) |
Attenuation (≯dB/100m) |
Avg. Power (KW) |
|
30 |
1.80 |
2.72 |
|
50 |
2.30 |
2.13 |
|
150 |
4.00 |
1.22 |
|
220 |
4.90 |
1.00 |
|
450 |
7.10 |
0.69 |
|
900 |
10.30 |
0.48 |
|
1500 |
13.60 |
0.36 |
|
1800 |
15.00 |
0.33 |
|
2000 |
15.90 |
0.31 |
|
2500 |
18.00 |
0.27 |
|
3000 |
19.70 |
0.25 |
|
5800 |
29.10 |
0.17 |
|
