RG174 Coax Cable Single shielded with Black PVC Jacket
RG174 Coax Cable Single shielded with Black PVC Jacket
|
Voton P/N: RG174 |
|
Highlights: |
● Jumper Assemblies in Wireless Communication Systems
● Short Antenna Feeder Runs
● Any Application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed. |
|
|
RoHS Certificate: Compliant |
|
Data Sheet: |
Datasheet Download |
|
|
 |
|
|

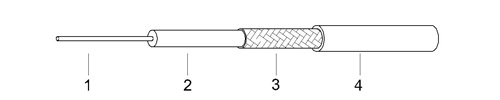

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Tinned Copper |
7x0.16 |
|
2. Dielectric |
Solid PE |
1.52 |
|
3. Outer Conductor |
Tinned Copper Braid
|
2.05 |
|
4. Jacket |
PVC
|
2.60 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
101.05 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
66 |
|
Shielding Effectiveness (>dB) |
|
10 |
|
Max. Oper. Voltage (VMS) |
|
1500 |
|
Max. Oper. Frequency (MHz) |
|
1000 |
|
Operating Temp. (℃) |
|
-20 to 80 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (MHz) |
|
Attenuation (≯dB/100m) |
|
100 |
|
27.6 |
|
400 |
|
55.8 |
|
1000 |
|
89.9 |
|
