RG316D Coax Cable Double Shielded with Tan FEP Jacket
RG316D Coax Cable Double Shielded with Tan FEP Jacket
|
Voton P/N: RG316D |
|
|
|
RoHS Certificate: Compliant |
|
Data Sheet: |
Datasheet Download |
|
|
 |
|
|

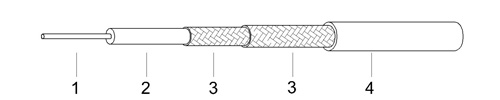

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Silver Plated Copper Clad Steel |
7x0.17 |
|
2. Dielectric |
PTFE |
1.52 |
|
3. Outer Conductor |
Double Silver Plated Copper Braid
|
2.40 |
|
4. Jacket |
FEP
|
2.90 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
96.45 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
70 |
|
Max. Oper. Voltage (VMS) |
|
1200 |
|
Max. Oper. Frequency (MHz) |
|
3000 |
|
Bending Radius (mm) |
|
15 |
|
Operating Temp. (℃) |
|
-55 to 200 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (MHz) |
|
Attenuation (≯dB/100m) |
|
100 |
|
26.2 |
|
400 |
|
53.1 |
|
1000 |
|
85.6 |
|
3000 |
|
153.2 |
|
