RG405 Coax Cable with Copper Outer Conductor
RG405 Coax Cable with Copper Outer Conductor
|
P/N: RG405 |
|
|
|
RoHS Certificate: Compliant |
|
Data Sheet: |
Datasheet Download |
|
|
 |
|
.jpg)
|

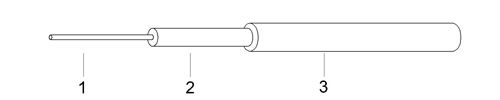

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Silver Played Copper Clad Steel |
0.51 |
|
2. Dielectric |
PTFE |
1.68 |
|
3. Outer Conductor |
Copper Tube
|
2.20 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
95.1 |
|
Impedance (Ohm) |
|
50 |
|
Cornoa Extinction Voltage(VRMS@60Hz) |
|
1500 |
|
Voltage Withstanding (VRMS@60Hz) |
|
5000 |
|
Moding Frequency (GHz) |
|
61 |
|
Min. Inside Bend Radius (mm) |
|
7.63 |
|
Outer Conductor Integrity Temp. (℃) |
|
175 |
|
Operating Temp. (℃) |
|
-55 to 125 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (GHz) |
Attenuation (≯dB/100m) |
Power (Watts CW) |
|
0.5 |
45.0 |
232.0 |
|
1.0 |
64.0 |
162.4 |
|
5.0 |
151.0 |
69.8 |
|
10.0 |
222.0 |
47.9 |
|
20.0 |
329.0 |
32.6 |
|
