Semirigid Coax Cable 0.086 Diameter With Copper Outer Condu
Semirigid Coax Cable 0.086 Diameter With Copper Outer Conductor
|
CMPTER P/N: SR086 |
|
|
|
RoHS Certificate: Compliant |
|
|
|
 |
|
.jpg)
|

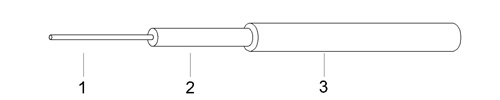

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Silver Played Copper Clad Steel |
0.51 |
|
Silver Played Copper |
|
2. Dielectric |
PTFE |
1.68 |
|
3. Outer Conductor |
① Copper Tube |
2.20 |
|
② Tin Plated Copper Tube |
|
③ Silver Plated Copper Tube
|
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
95.1 |
|
Impedance (Ohm) |
|
50 |
|
Cornoa Extinction Voltage(VRMS@60Hz) |
|
1500 |
|
Voltage Withstanding (VRMS@60Hz) |
|
5000 |
|
Moding Frequency (GHz) |
|
61 |
|
Min. Inside Bend Radius (mm) |
|
7.63 |
|
Outer Conductor Integrity Temp. (℃) |
|
175 |
|
Operating Temp. (℃) |
|
-55 to 125 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (GHz) |
Attenuation (≯dB/100m) |
Power①/②/③ (Watts CW) |
|
0.5 |
45.0 |
323.0/ 190.3 / 173.5 |
|
1.0 |
64.0 |
162.4/ 133.2 / 121.5 |
|
5.0 |
151.0 |
69.8 / 57.2 / 52.2 |
|
10.0
|
222.0
|
47.9 / 39.3 / 35.8
|
|
20.0
|
329.0
|
32.6 / 26.7 / 24.3
|
|
