SMB (SubMiniature version B) connectors are coaxial RF connectors
|
 |
|
developed in the 1960s. SMB connectors are smaller than SMA connectors.
|
|
|
They feature a snap-on coupling and are available in either 50 Ω or 75 Ω impedance.
|
|
|
They offer excellent electrical performance from DC to 4G Hz.An SMB jack has a male
|
|
| center pin, while an SMB plug has a female basket. | |
|
The SSMB connector is a small version of the standard SMB connector with a
'snap-on' coupling Impedance: 50 Ohm Operating frequency: DC-12.4 GHz
|
|
| This type connector is popularly used in telecom and automotive, but | |
| need pay more attention on female pin in male body or male pin in female body | |
| SMB Connector Design Features: | |
 Quick connect/disconnect snap on mating save installation time |
|
|
Low reflection DC to 4GHz and low cost connector combined |
|
|

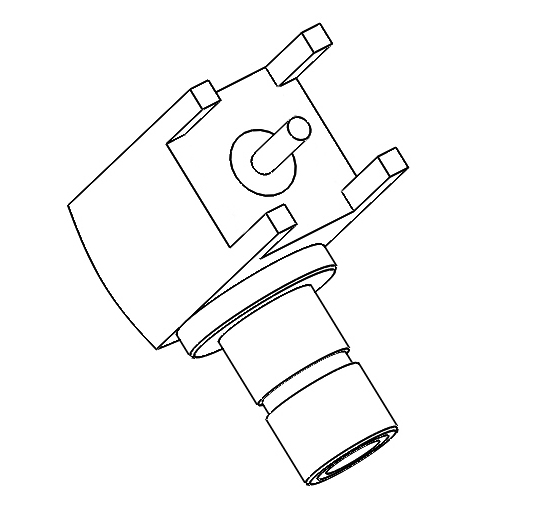

SMB slide-one male and female PCB type allows board t board mounting with a low insertion force |
|
